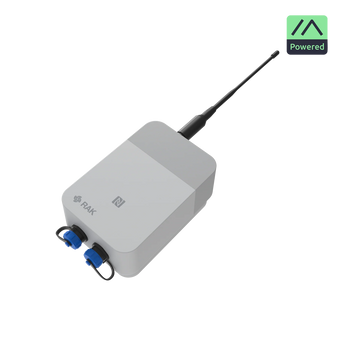

WisMesh Repeater — Professional Meshtastic & MeshCore Range Extender (EU868)

When the Repeater Mini isn't enough. The WisMesh Repeater is a professional-grade Meshtastic range extender with an IP67-rated enclosure and flexible power input (5–16V DC) — designed for permanent outdoor deployments where you need guaranteed uptime and the freedom to use your own power solution.

Pre-flashed with Meshtastic firmware on the RAK4631 nRF52 module. Also compatible with MeshCore firmware. Configure wirelessly via Bluetooth using the free Meshtastic app, mount it on a wall or pole, and your mesh network gains a permanent, robust relay point.

Key Features

• Flexible power input (5–16V DC) — connect your own solar panel, 12V adapter, or battery system. Use the power source that fits your deployment
• IP67 waterproof — fully dustproof with submersion-proof connectors and enclosure. Built for years of outdoor exposure
• RAK4631 nRF52 module — ultra-low power consumption with Semtech SX1262 LoRa transceiver. Same proven module as the Pocket V2 and Repeater Mini
• RP-SMA antenna connector — upgrade to a high-gain outdoor antenna for maximum coverage
• Wall + pole mounting included — brackets for both mounting styles in the box
• Power adapter included — plug it in and run it from mains power, or switch to your own solar/battery setup
• EU868 frequency — configured for legal operation across the EU, UK, Norway, and Switzerland

WisMesh Repeater vs Repeater Mini — Which One?

Choose the Repeater if you have mains power available, want to connect your own solar/battery system, or need a professional-grade enclosure for a permanent installation. Choose the Repeater Mini for self-contained, portable deployments where the built-in solar panel and battery are sufficient.

Ideal For

• Permanent infrastructure — buildings, community centres, church towers, or utility poles with mains power available
• Municipal emergency communication — permanent mesh relay points for community resilience during power outages. Read our guide: Communication During a Power Outage
• Agricultural and remote sites — extend mesh coverage across large properties and rural areas, powered by your own solar setup
• MeshCore infrastructure — a backbone repeater for building out the European MeshCore network with guaranteed uptime
• Professional deployments — safety regions, event organisers, search and rescue, field logistics

Antenna Upgrade Tip

The included antenna works for getting started, but for a permanent outdoor installation, upgrading to a McGill tuned outdoor antenna dramatically extends your mesh coverage. Our most popular setup: a 6 dBi McGill antenna on a pole, connected via an N-Female to SMA-RP-Male adapter (€9.98) or an LMR-400 cable for longer runs. Read our Complete EU868 Antenna Guide for help choosing.

Specs

• Module: RAK4631 (Nordic nRF52840 + Semtech SX1262)
• Firmware: Meshtastic (pre-flashed), MeshCore compatible
• Connectivity: LoRa + BLE 5.0
• Antenna: RP-SMA connector (antenna included)
• Power input: 5–16V DC via M8 connector
• Power adapter: Included
• Enclosure: IP67 rated with IP67 connectors
• Mounting: Wall mount + pole mount brackets included
• Frequency: EU868 (863–870 MHz)
• MCU: 32-bit ARM Cortex-M4F, 64 MHz, 1 MB Flash, 256 KB RAM
• Product code: RAK10721

What's in the Box

• 1 × WisMesh Repeater (assembled, pre-flashed with Meshtastic)
• 1 × LoRa antenna (EU868)
• 1 × Wall mount bracket
• 1 × Pole mount bracket
• 1 × Power adapter
• 1 × Screw set

Pair It With

• 6 dBi McGill Tuned Antenna (€65.28) — our most popular outdoor antenna for repeater installations
• N-Female to SMA-RP-Male Adapter (€9.98) — connects McGill antennas to the repeater
• LMR-400 Coaxial Cable — for longer cable runs between antenna and repeater
• Weather Sealing Tape — protect outdoor antenna connections from moisture
• WisMesh Pocket V2 (€99) — handheld node to pair with your repeater network
