WisMesh Repeater Mini

Product description

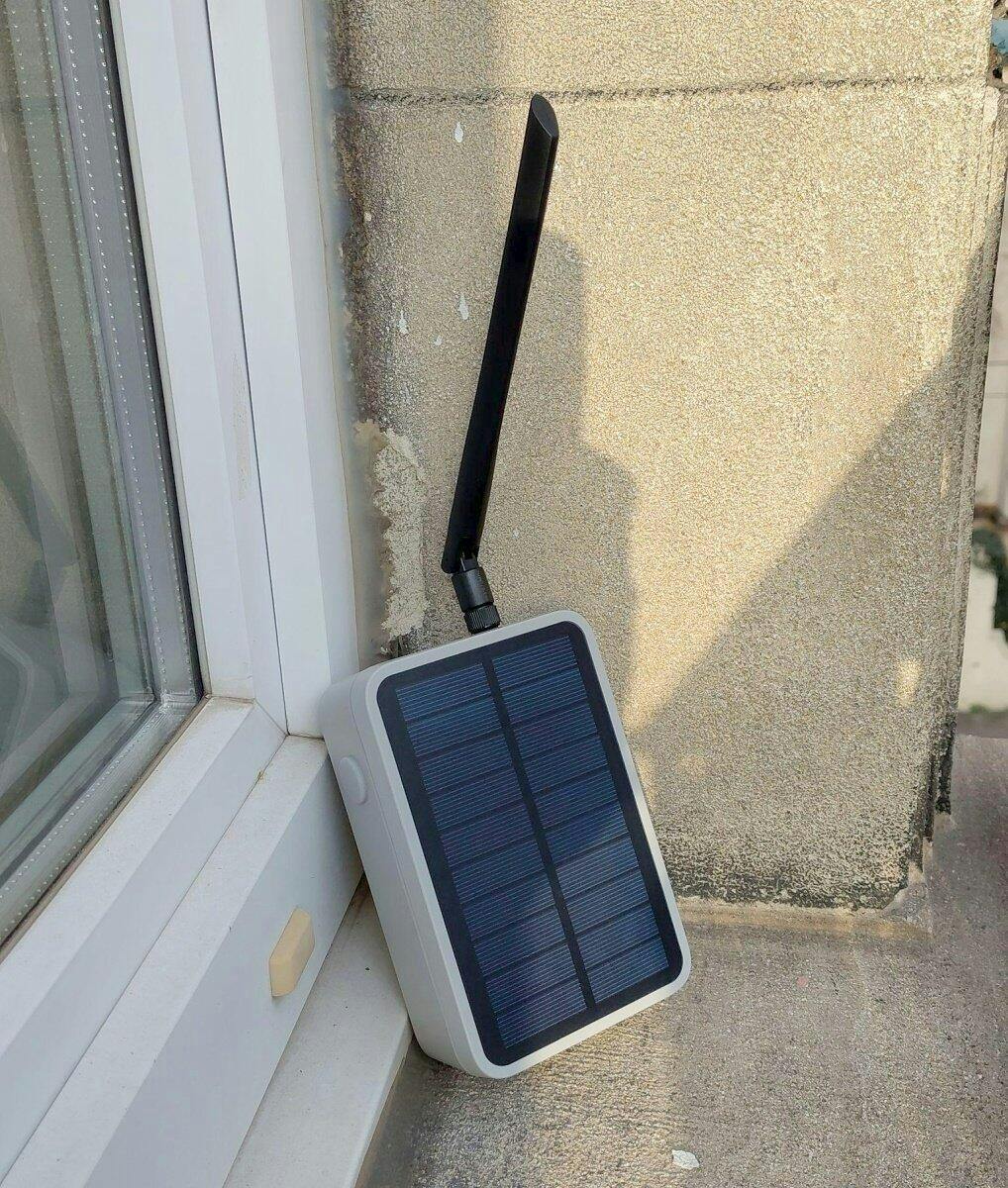

The WisMesh Repeater Mini is a ready-to-use Meshtastic repeater designed to extend the range of your LoRa mesh network. With a 3200 mAh rechargeable battery and an integrated solar panel, it can be deployed in areas without a permanent power supply.

Housed in an IP67-rated rugged enclosure with weatherproof connectors, it’s built for reliable outdoor use. The unit comes pre-flashed with Meshtastic firmware on the RAK4631 nRF52 LoRa module, making setup simple through the Meshtastic mobile app over Bluetooth.

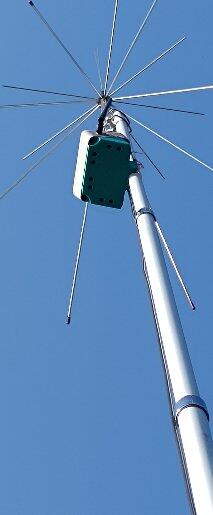

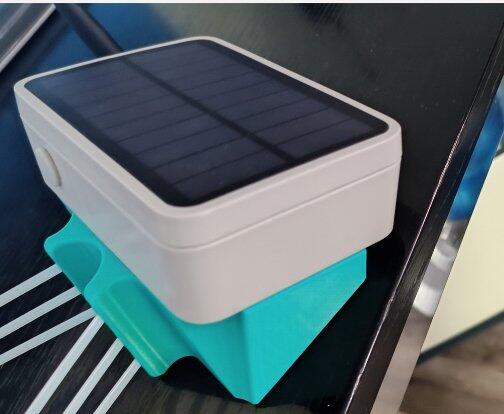

Mounting is flexible with swappable brackets for wall or pole installations, making it easy to place the repeater exactly where your network needs it.

Why You Need It

• Bridges coverage gaps – keeps your network connected when devices are too far apart.

• Reliable off-grid – integrated solar panel and battery mean no external power is required.

• Simple setup – configure via Bluetooth in the Meshtastic app.

• Durable outdoors – IP67-rated enclosure ensures protection in harsh conditions.

Key Features

• RAK4631 Core Module

  • Nordic nRF52840 MCU (ARM Cortex-M4F, 64 MHz, 1 MB Flash, 256 KB RAM)

  • Bluetooth Low Energy 5.0

  • Semtech SX1262 LoRa transceiver

• Mini Base Board (RAK19003)

  • Compact 30×35 mm design

  • USB Type-C debug port

  • Two slots for WisBlock Sensor Modules

• Unify Enclosure with Solar Panel

  • IP67-rated ABS enclosure (150×100×50 mm)

  • Pre-mounted M8 5-pin connector and RP-SMA antenna port

• 3200 mAh Li-Ion Battery

  • IEC 62133-2:2017 certified

  • Long-lasting power for off-grid operation

• WisMesh Blade Antenna

  • High-performance omnidirectional LoRa antenna

  • Frequency options: 863–870 MHz (EU) or 902–928 MHz (US)

Example Use Cases

• Emergency communications – ensures reliable relay in disaster or off-grid scenarios.

• Agriculture and remote sites – extends coverage across farms and large properties.

• Urban coverage – placed on rooftops or tall structures to improve connectivity.

What’s in the Box

• 1 × WisMesh Repeater Mini

• 1 × USB Cable

• 1 × WisMesh Blade Antenna

Frequently Asked Questions

How do I set it up?
Use the Meshtastic app over Bluetooth to configure the repeater.

How is it powered?
With a 3200 mAh rechargeable battery and integrated solar panel for continuous operation.

Why do I need a repeater?
LoRa has long range in open areas, but obstacles (buildings, terrain, forests) reduce signal. A repeater improves coverage by relaying messages across gaps.
