PKCell LiPo Battery for RAKwireless WisBlock, PH Connector (2000 mAh / 2500 mAh)

The right battery for your RAKwireless WisBlock build. These PKCell Li-Polymer batteries come pre-terminated with a PH connector that plugs directly into the battery port on WisBlock base boards. No soldering, no crimping, no adapters. Choose 2000 mAh for compact builds or 2500 mAh for maximum runtime.

Whether you are building a custom Meshtastic node on a RAK4631, a solar-powered sensor with WisBlock modules, or a MeshCore repeater in your own enclosure, this is the power source that completes the build.

Which Capacity Do I Need?

Runtime estimates assume a typical Meshtastic client configuration on an nRF52840-based WisBlock. Actual runtime depends on transmit frequency, GPS usage, and settings.

Compatible With

• RAKwireless WisBlock base boards with PH battery connector (RAK19007, RAK19003, RAK19001)
• WisBlock Meshtastic starter kits and custom RAK4631 builds
• Solar-powered WisBlock nodes: both variants work with the WisBlock solar charging circuit
• Any device with a matching PH battery connector and 3.7V LiPo charging circuit

Check Polarity Before Connecting

Important: there is no universal standard for the pin order on PH battery connectors. Different manufacturers wire positive and negative in different positions. Before connecting any battery to your board, verify that the red wire (positive) aligns with the positive marking on your board's battery port. Connecting a battery with reversed polarity can permanently damage your board. These PKCell batteries follow the polarity convention used by RAKwireless WisBlock base boards, but a five second visual check protects a fifty euro board.

Key Features

• Pre-terminated PH connector: plugs straight into WisBlock base boards
• Built-in protection circuit: guards against overcharging, over-discharging, overcurrent, and short circuits
• 3.7V nominal (4.2V charged): matches the WisBlock charging circuit
• Quality brand cells: PKCell is an established battery manufacturer, not an unlabelled clone with inflated capacity claims
• Compact flat form factor: fits typical 3D-printed and off-the-shelf project enclosures

Building for RAK or Heltec?

These batteries are intended for the RAKwireless WisBlock line. Building on Heltec boards instead? Those use a different connector standard. Use our Heltec 3000 mAh battery for the WiFi LoRa 32 V3, V4, and Wireless Tracker V2.

Specs

• Brand: PKCell
• Chemistry: Li-Polymer
• Nominal voltage: 3.7V
• Charged voltage: 4.2V

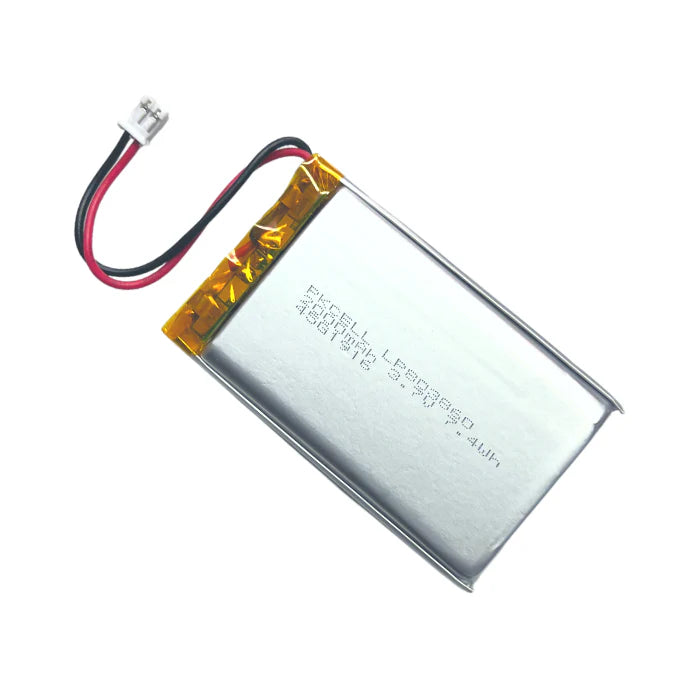

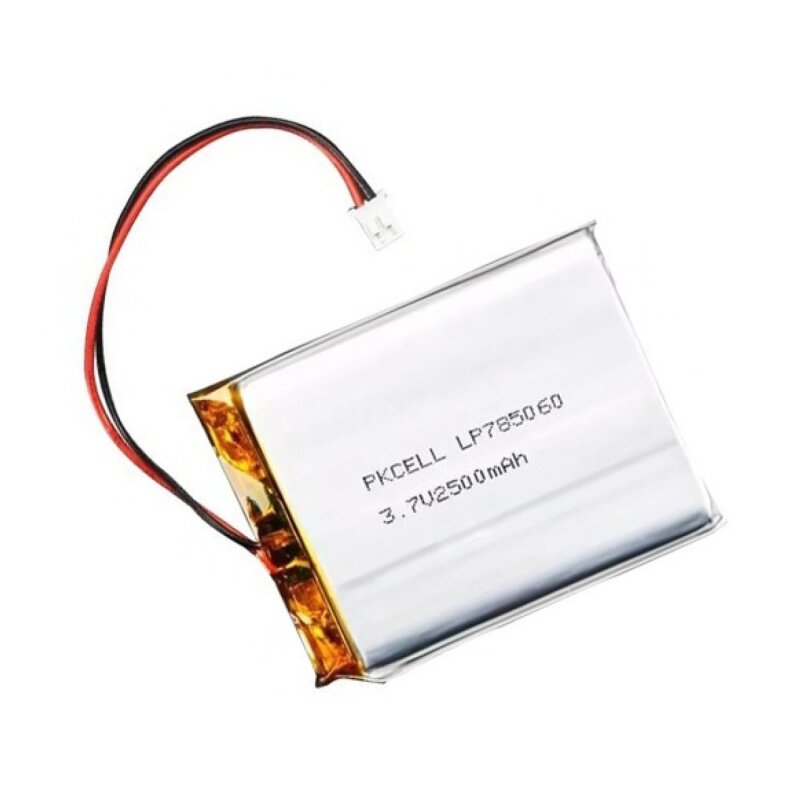

• Capacity: 2000 mAh (LP803860) or 2500 mAh (LP785060)
• Connector: PH type, pre-terminated
• Protection: Overcharge, over-discharge, overcurrent, short circuit
• Dimensions: 8.0 x 38 x 60 mm (2000 mAh) / 7.8 x 50 x 60 mm (2500 mAh)
• Certifications: CE, RoHS compliant

What's in the Box

• 1 × PKCell LiPo battery in your selected capacity, with pre-terminated PH connector

Safety Notice

Lithium polymer batteries require correct handling. Charge only via the device's onboard charging circuit or a compatible LiPo charger. Do not puncture, short circuit, expose to fire, or leave in extreme temperatures. Store at approximately 50 percent charge between +10°C and +25°C when not in use. Dispose of used batteries at your local battery recycling point, in accordance with EU battery regulations.
