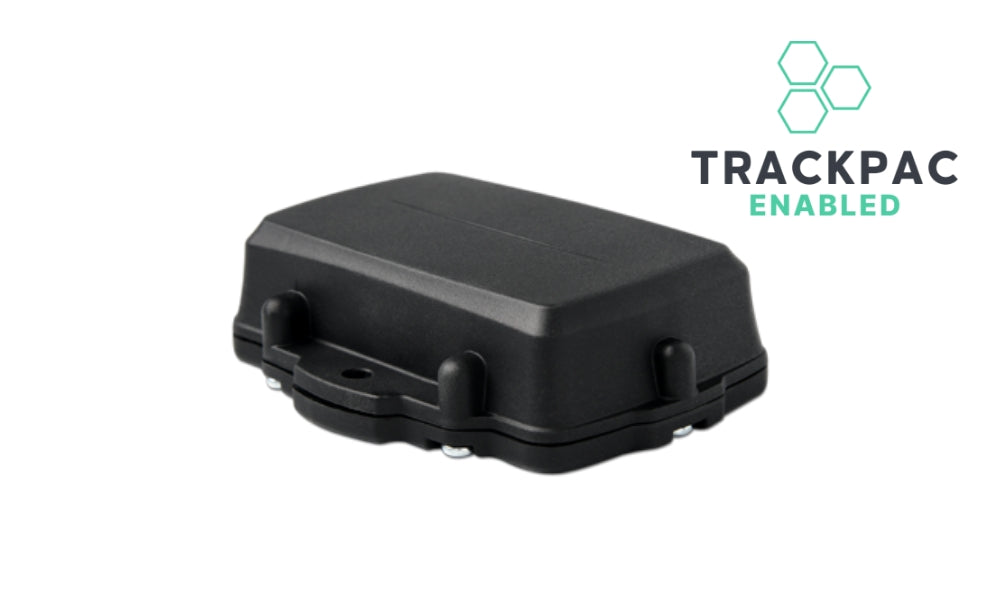

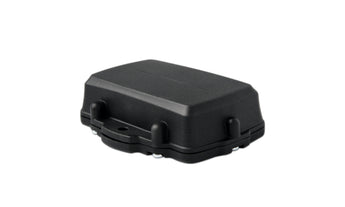

Digital Matter Oyster3 LoRaWAN GPS Tracker

Digital Matter Oyster3 LoRaWAN GPS Tracker

Regular price €124,99 EUR
Regular price Sale price €124,99 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

The Oyster3 is an Ultra-rugged and long-life battery-powered LoRaWAN GPS tracking device for long-term asset tracking.

Optional Trackpac-enabled device.
When selecting Trackpac this device comes with 1 free month of Trackpac subscription ($30/Year after).

Bulk discount is available at 10+ units. Contact us to get a quote.

Digital Matter Oyster3 LoRaWAN GPS Tracker

The Digital Matter Oyster3 LoRaWAN GPS Tracker is an Ultra-rugged and long-life battery-powered LoRaWAN GPS tracking device for long-term asset tracking. The Oyster3 has a deploy-once battery life with up to 10+ years on only 3 x AA user-replaceable batteries. The tracker tracks assets when they’re on the move and enters sleep mode when stationary to conserve power. Periodic battery status uplinks give a breakdown of power usage. Weatherproof and ultra-rugged IP67 housing. All 868, 902-928MHz LoRaWAN® regions are supported.

Battery life estimation:
Once Daily location updates – 10+ years
Movement-Based location updates – 5 years
Hourly location updates – 2 years

Hexaspot has partnered with Trackpac, a leading Helium LongFi/LoRaWAN Software company, to give you an end-to-end product experience. Trackpac will allow you to track your device anywhere it goes within the Helium network for a small monthly or yearly subscription. The device can also be used as a Mapper on the Helium Network (mapping functionality will be added in the future).

In the Package:

1 x Digital Matter Oyster3 LoRaWAN GPS Tracker
1 x Trackpac Getting Started instructions + 1 month free subscription

Key Features:

  • This device works on all 868, 902-928MHz LoRaWAN regions
  • Ultra-rugged IP68, IK07 housing
  • Replaceable 3 x AA batteries for power (not included)
  • 10+ years battery life depending on user set interval
  • -30°C to +60°C operating temperature (for operation in extreme temperatures use LTC batteries)

Full Tech Specs:

Below or read on Digital Matter website.

CONNECTIVITY

LoRaWAN Highly sensitive radio transceiver is available in a single multiband device. Both 868 and 902 – 928 MHz supported.
LoRaWAN Regions AU915
AS923-1
AS923-2
AS923-3
AS923-4

EU868
IN865
KR920
RU864
US915

BATTERIES

User-Replaceable Batteries 3 x AA. Batteries not included.
Supported Battery Types Alkaline
*Lithium (LiFeS2)
*Lithium Thionyl Chloride (LTC)

*Lithium or LTC recommended for best performance. Please dispose of Lithium batteries in a safe and responsible manner
**Battery Life Estimates Once Daily location updates – 10+ years
Movement-Based location updates – 5 years
Hourly location updates – 2 years

LOCATION

GNSS Module Sony CXD5605
Constellation Concurrent GPS, GLONASS, Galileo, QZSS
Tracking Sensitivity -147dBm cold start / -161dBm hot start
Location Accuracy ~1m 2D RMS, GPS, -130dBm
Low Noise Amplifier GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA) allowing operation where other units fail
LoRaWAN Gateway Geolocation Fallback LoRaWAN gateway geolocation fallback when there is no GNSS (planned)

POWER

Input Voltage 4-15V DC
Sleep Current <10uA*
*Average current in lowest power configuration
Safety Reverse Polarity Protection

MECHANICS / DESIGN

Dimensions 108 x 86 x 30 mm (4.25 x 3.39 x 1.18″)
Weight 180g
Housing Ultra-Rugged IP67 Housing. Non-branded housing for optional white-labeling.
IP Rating IP67 rated housing ensures device can withstand fine dust, high-pressure spray, submersion for 30 mins in 1m of water, and extreme temperatures
Installation Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws supplied.
Operating Temperature -30°C to +60°C – for operation in extreme temperatures use LTC batteries
GPS Antenna Internal
RF Antenna Internal
3-Axis Accelerometer 3-Axis Accelerometer to detect movement
Diagnostic LED Diagnostic LED indicates operation status
On-Board Speed and Heading Current speed and heading is reported with each position update

SMARTS

Battery Life Monitoring Periodic battery status uplinks give a breakdown of power use
Geofence Alerts The server can use device location to create geofences and alerts if an asset enters or leaves designated locations
Periodic or Movement-Based Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.
Sleep Mode Stationary devices enter sleep mode until movement occurs to conserve battery life and optimize data usage
Theft Recovery Reduce or minimize asset loss and theft
Tip Detection and Rotation Counting Axis angle reporting, tip detection and rotation counting (planned)

DEVICE MANAGEMENT

Flexible Configuration Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application.
Configuration App Manage device firmware updates and parameters via DM-Link provisioning toolSome parameters can be changed via downlink.

INTEGRATION

Third-Party Integration Easy integration with comprehensive documentation and a flexible and open payload format

SECURITY

Data Security LoRaWAN® networks use AES-128 Encryption so your data is protected

WARRANTY

Manufacturer’s Warranty Two-year manufacturer’s warranty. Exclusions apply.

CERTIFICATIONS

FCC, ICASA, CE, UKCA, ACMA



Documentation:
