13 dBi Tuned Directional Antenna (EU 868)

13 dBi Tuned Directional Antenna (EU 868)

Regular price €119,95 EUR
Regular price €300,95 EUR Sale price €119,95 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

The 13dBi Optimised Helium Antenna offers +7% forward Power Transmission compared to alternative non optimised VSWR Antenna designs.

Results in higher coverage and Increased HNT $ revenue.

13 dBi Tuned Directional Antenna

McGill Microwave Systems has launched it’s newest addition to our market leading Ultra High Performance Optimised and Tuned Lora Frequency Band Antenna series.

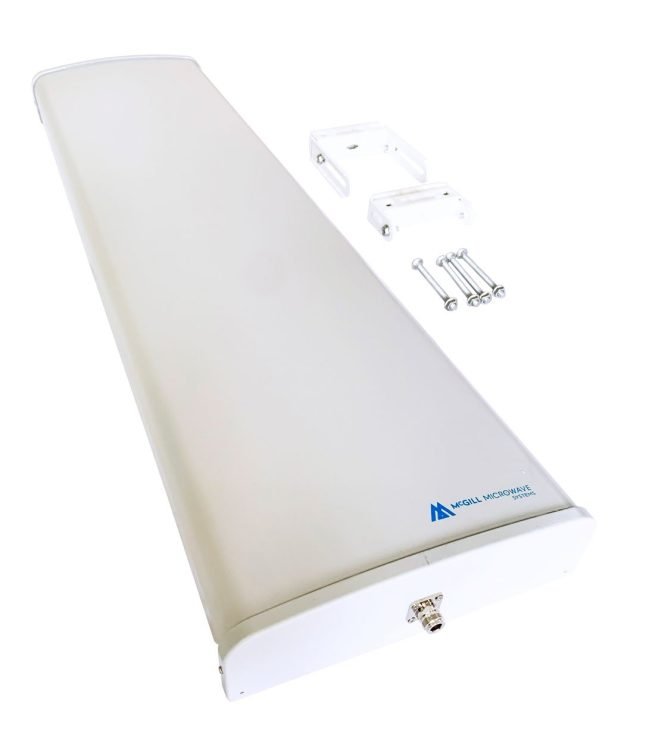

The Extremely Powerful & Unique 13 dBi Tuned Directional Antenna is directional and has the additional significant advantage that it can be tilted or moved in the Azimuth direction – unlike all other Omni Directional Antennas.

Omni directional Antennas radiate 360 degrees – this unique flat panel Antenna design is radically different in that it takes all of the radiated energy which usually would be transmitted behind and to the side of the Antenna and focuses all of this RF energy into the forward direction only – in one very high beam – typically 65 degrees Vertical beam width.

Typical applications:

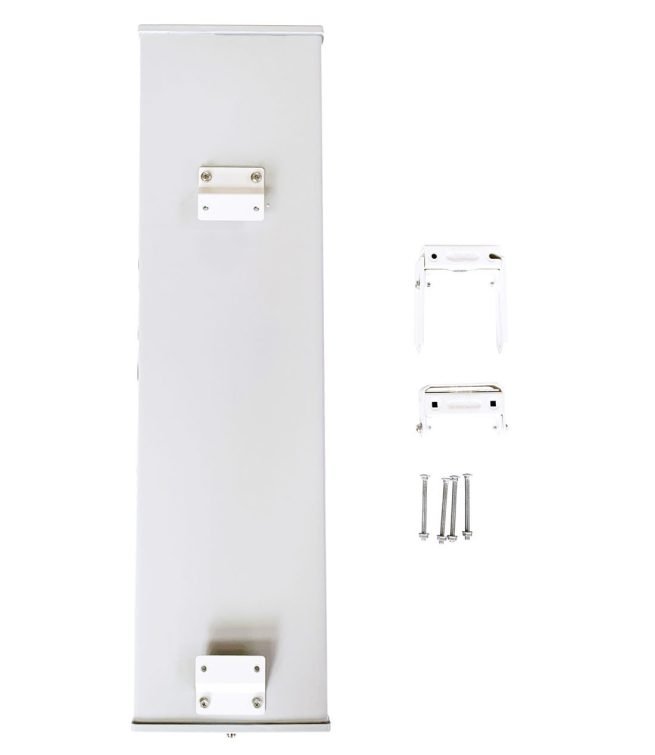

  • Where it’s desired to steer/direct the Radiated beam into a large or difficult to reach target area. This is achieved by utilising the unique feature of this Antenna design of being able to tilt or move in the Antenna utilising it’s tillable and rotatable Antenna Mount (supplied) to focus the large beam exactly in the direction required.
  • Ideal for mounting on high up Balconies or Tower Blocks where Antennas are blocked from radiating in the rearwards direction.
  • Installations located on the coast where transmission to the antenna rear is not required/desired.
  • Installations located immediately in front of large hills or building where rear radiation is blocked and therefore not required.
  • The flat panel sector Antenna is small ,lightweight and unobtrusive and white in Colour.

13 dBi Tuned Directional Antenna Electrical Specifications

Frequency Range (MHz) 865-870
Gain (dBi) 13
HPWH (Deg) 65
HPWV (Deg) 18
Tilt (Deg) 0
VSWR ≤1.5
Impedance(Ω) 50
Connection Type N Female
Max Input Power (W) 50
Lightning Protection DC Ground

Mechanical Specifications

Dimensions (mm) 1120 x 280 x 80
Colour White
Radome MaterialUV UV Stabilised PVC
Weight (KG) 3
Temperature Range ( C ) -40 / +55
Rated Wind Speed (km/h) 126



Datasheet
