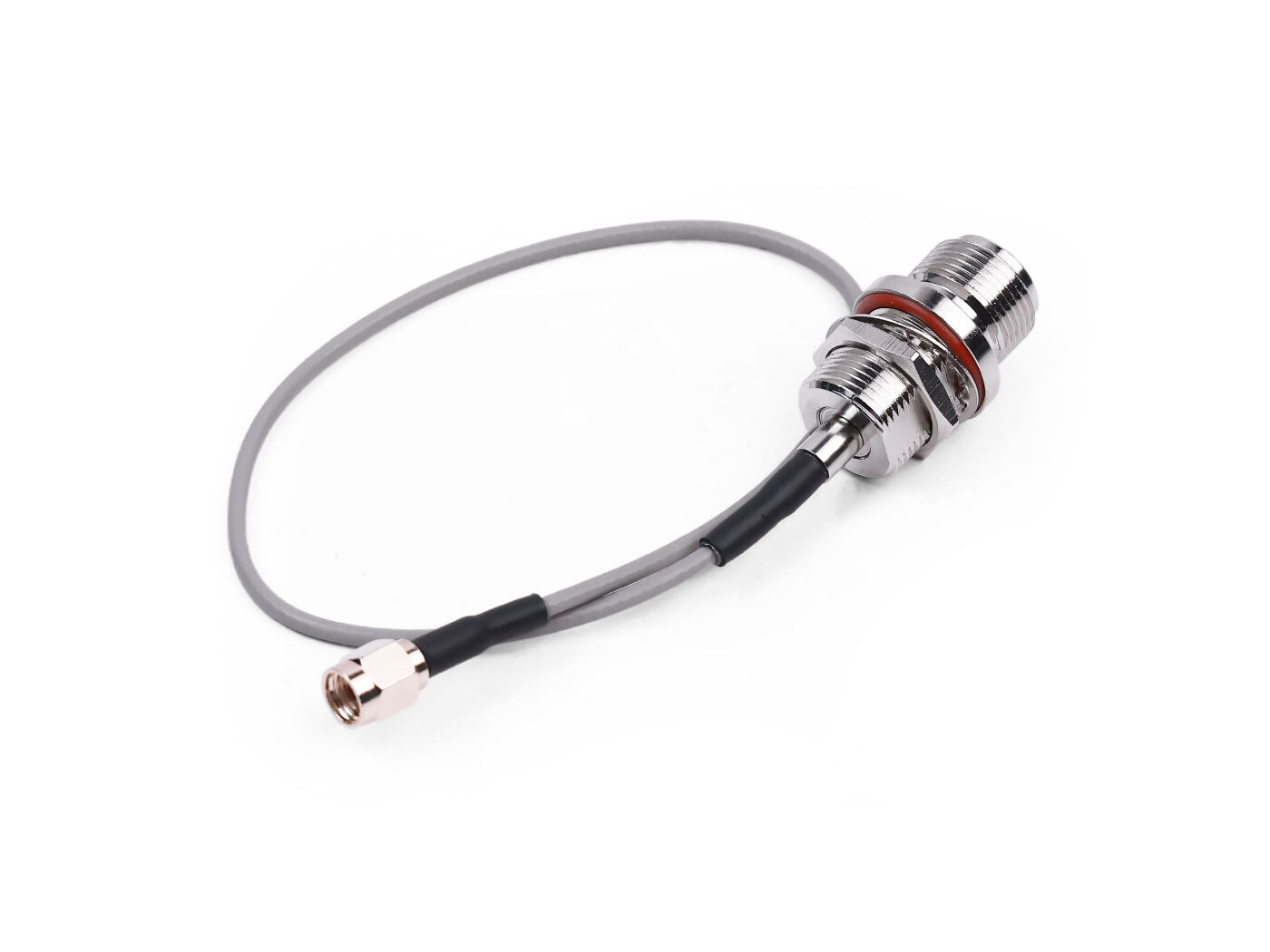

RP-SMA Male to N-Female Bulkhead RF Cable 300mm (RG316, Low Loss)

Connect your RP-SMA device to an N-type antenna, the clean way. This low-loss RG316 cable links a device with an RP-SMA Male port to an N-Female bulkhead connector that mounts through your enclosure wall. It is the cable you need when your board or repeater uses RP-SMA but your antenna, or your outdoor cable run, uses the more robust N-type standard.

With a durable FEP jacket rated for indoor and outdoor use, this cable is built to last in real deployments, not just on the bench.

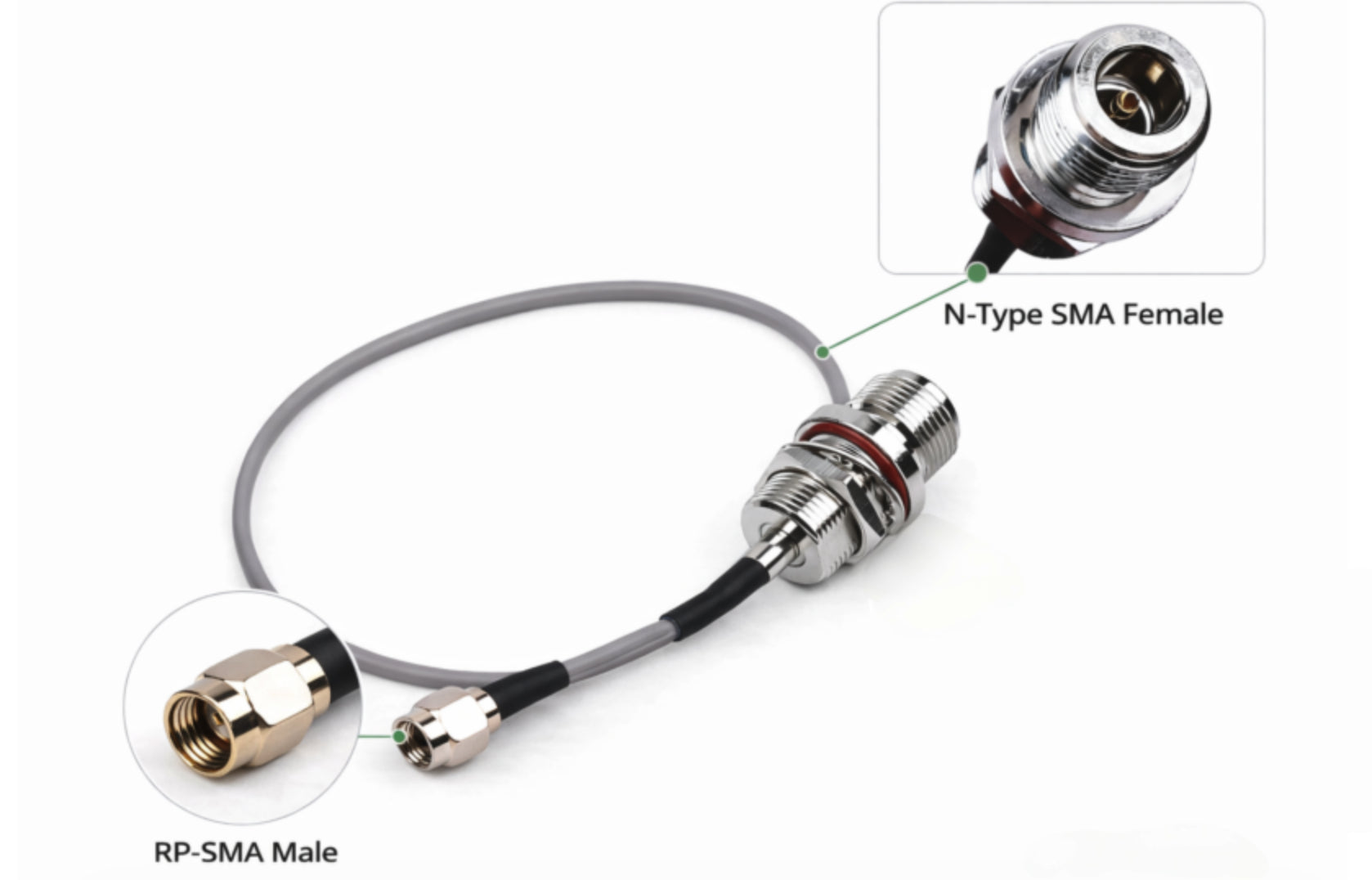

What It Connects

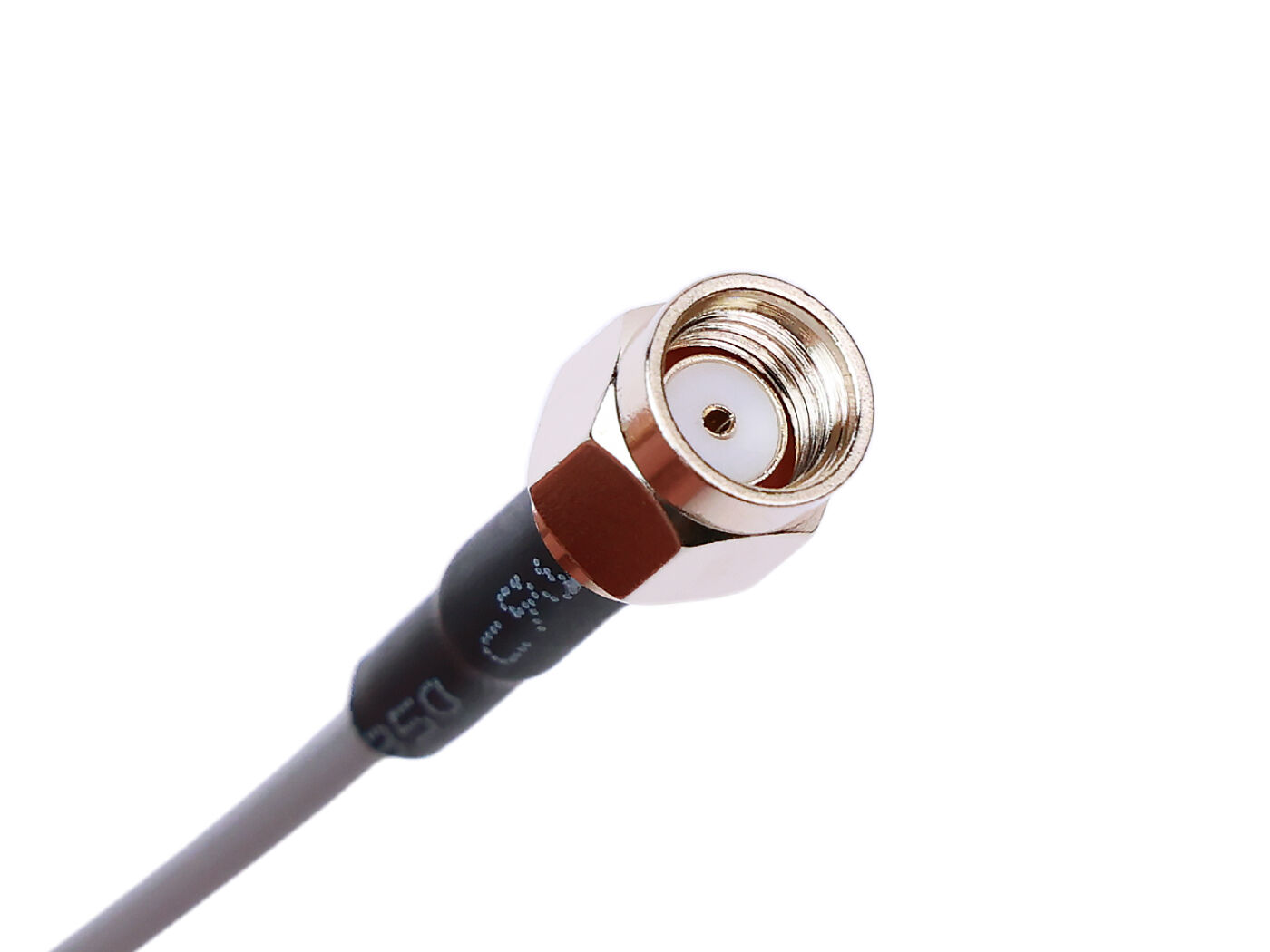

• RP-SMA Male on one end: fits devices with an RP-SMA Female antenna port, such as the WisMesh Repeater Mini and many LoRa boards

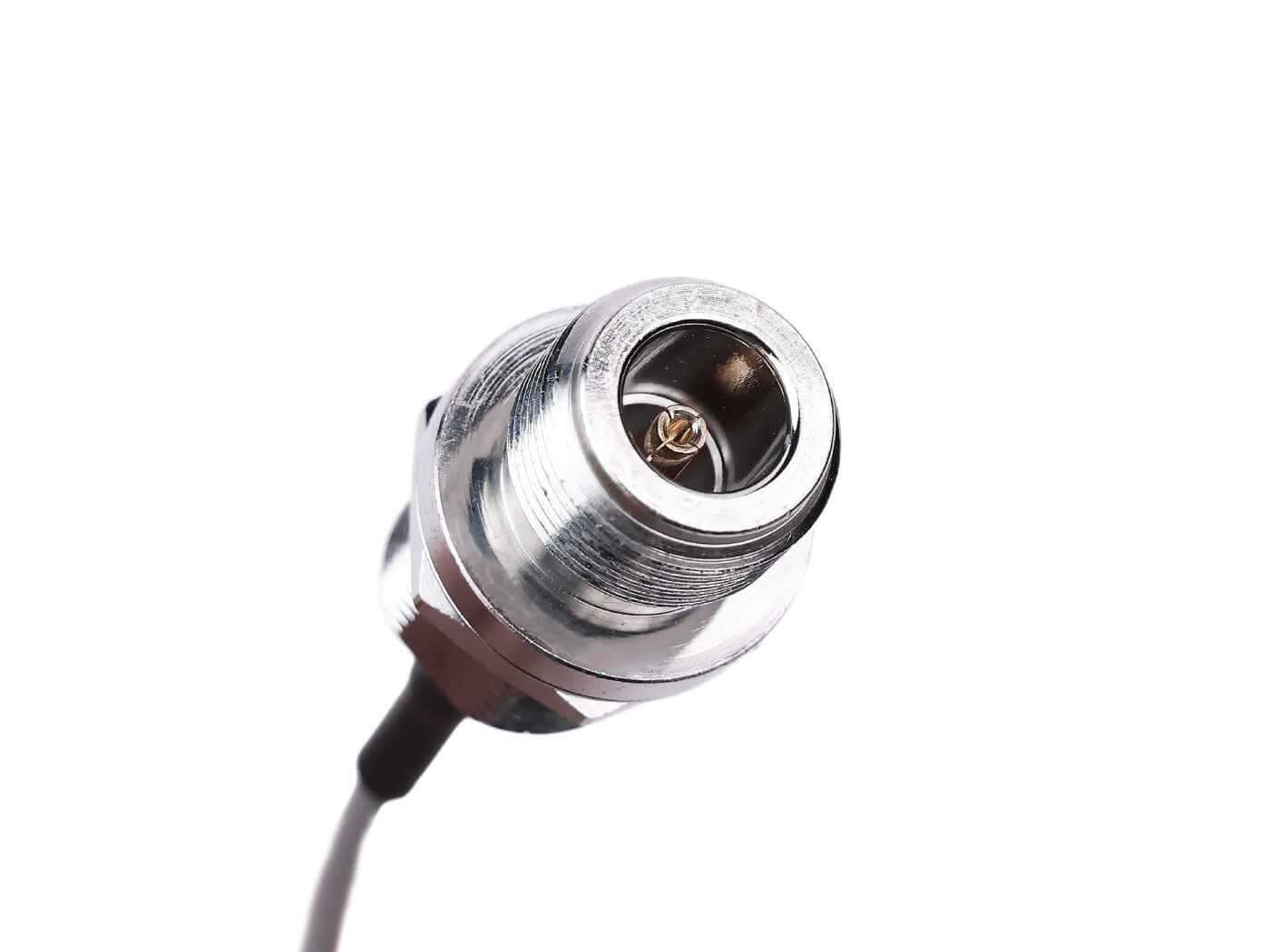

• N-Female bulkhead on the other end: mounts through an enclosure wall with its nut, ready to accept any N-Male antenna or cable outside

Key Features

• Low-loss RG316 coax: quality shielded cable that performs well at 868 MHz over this short length
• Durable FEP jacket: rated for both indoor and outdoor installation, resists UV, heat, and moisture better than standard PVC
• N-Female bulkhead connector: panel-mount design for a clean, professional pass-through on any enclosure
• 300mm length: enough to route from a board or repeater to the enclosure wall or mounting point
• 50Ω impedance: matched to all standard LoRa radios and antennas

Typical Uses

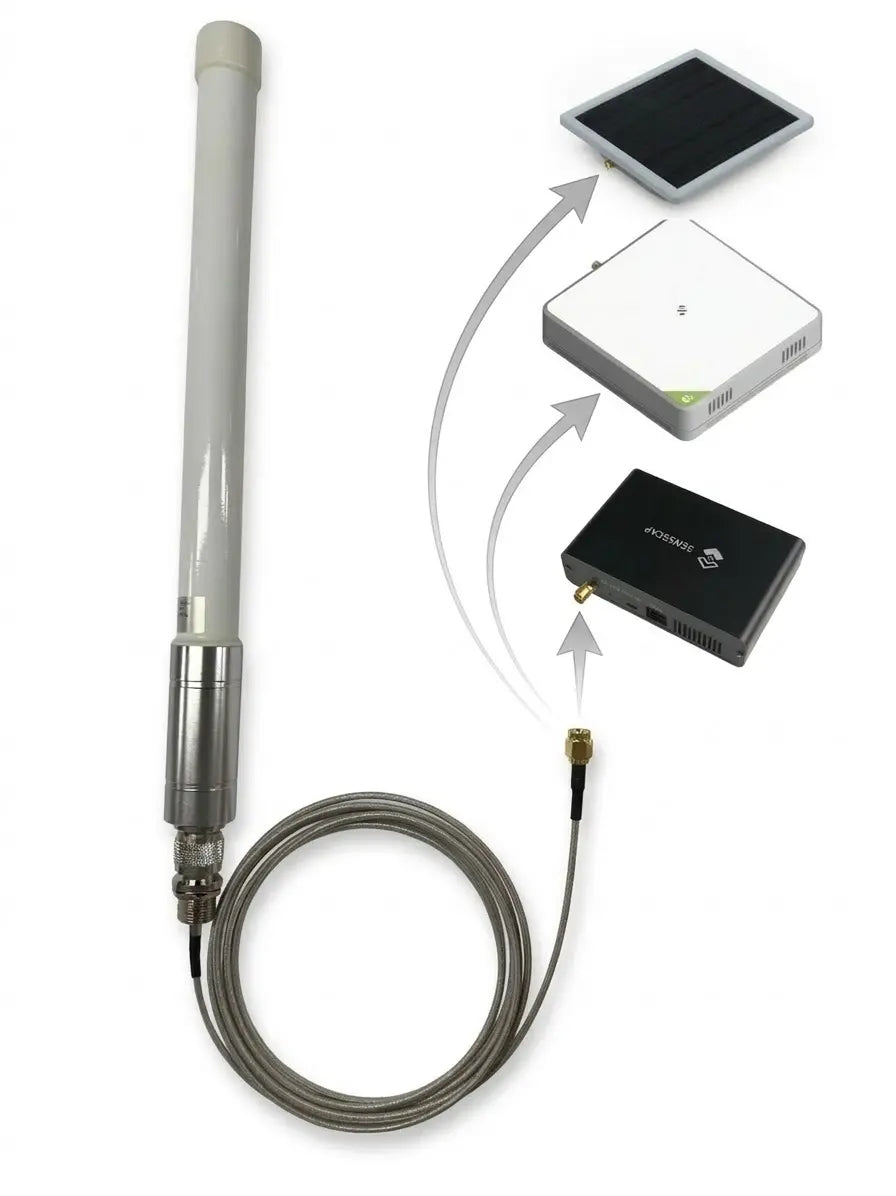

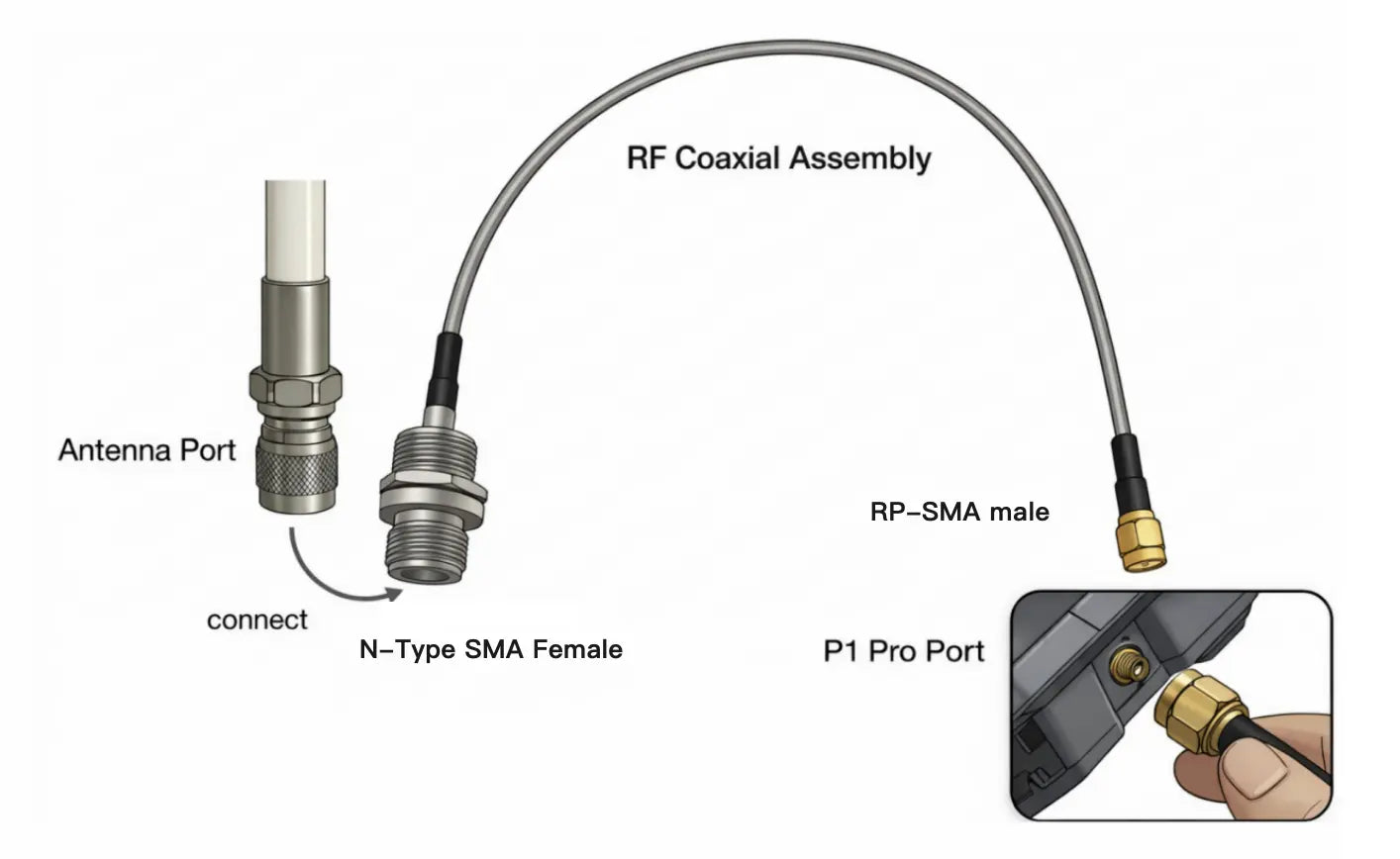

• Connecting a WisMesh Repeater Mini (RP-SMA) to an outdoor N-type antenna
• Passing the antenna connection cleanly through a weatherproof enclosure wall
• Adapting an RP-SMA device to an LMR-400 outdoor cable run, which typically uses N connectors
• Building a professional-looking repeater or gateway installation

Specs

• Connector A: RP-SMA Male
• Connector B: N-Female (bulkhead / panel mount)
• Cable type: RG316, low loss
• Jacket: FEP, indoor and outdoor rated
• Length: 300mm (30cm)
• Impedance: 50Ω
• Frequency: suitable for 868 MHz EU868 LoRa

What's in the Box

• 1 × RP-SMA Male to N-Female bulkhead RF cable, 300mm

Pair It With

• WisMesh Repeater Mini (€107): route its RP-SMA output to an external N-type antenna
• McGill 3 dBi Outdoor Antenna (N-Male): a tuned outdoor antenna to connect on the far side
• Weather Sealing Tape: seal the outdoor N connection for weatherproof installations
