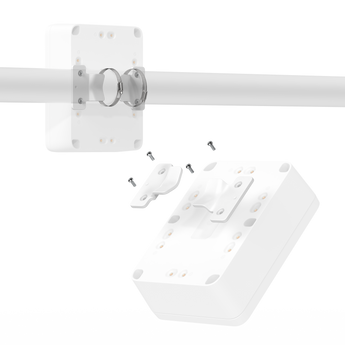

Unify Pole Mounting Horizontal Kit (Type B)

The Unify Pole Mount Horizontal Kit (Type B) consists of the key parts to enable you to mount your Unify Enclosure to a pole (Pole diameter between 65-89mm is recommended). The Unify Pole Mount Horizontal (Type B) accessory enables you to use regular mechanical adjustable industrial straps to secure your product in place.

The Unify accessories are hosted on the rear surface of the enclosure using the integrated mounting locations and are secured with M3 fasteners into robust and reusable brass threaded inserts.

The Unify Pole Mount Horizontal (Type B) accessory is ONLY compatible with Unify Enclosure Unify Enclosure 180x130x60mm. It is fixed across the mounting locations 2 + 3 and / or 5 + 6.

Unify Pole Mount (Type B) Specifications

• Material: ABS (UL94V-0)
• General Wall Thickness: 4.0mm
• Compatible with ONLY Unify Enclosure 180x130x60mm
• Compatible with mechanical adjustable industrial straps with strap width of up to 16mm

Enclosures NOT supported

• Unify Enclosure 100x75x38mm
• Unify Enclosure 150x100x45mm

Package Inclusion

• 2 pc Unify Pole Mounting Horizontal (Type B) accessories
• 4 pc M3x8mm Stainless Steel Screw (to mount the accessory to the enclosure)
• 2 pc Mechanical adjustable strap (stainless steel) for pole diameters 65-89mm
