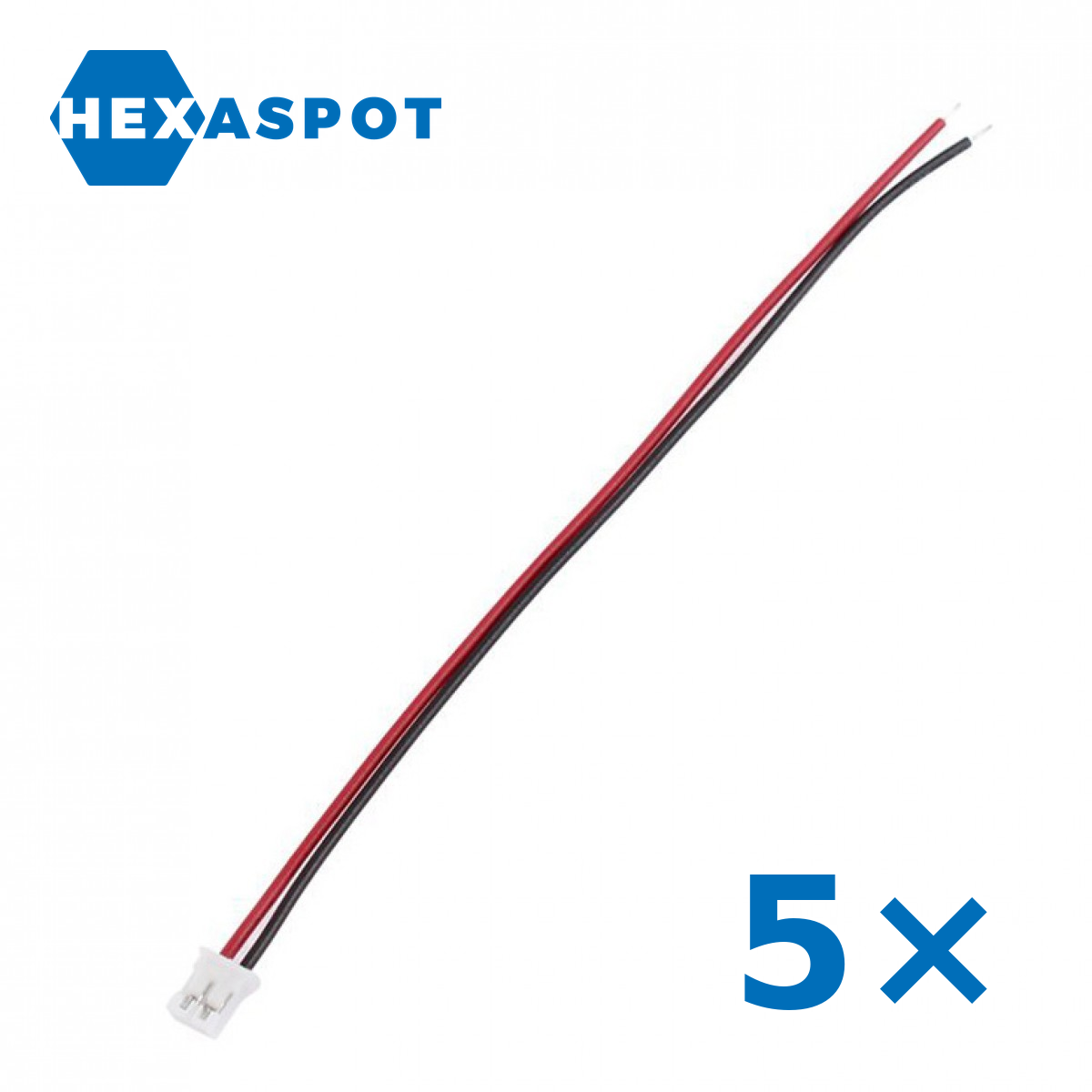

JST-PH 2.0 2-Pin Connector with Cable, 10 cm (Pack of 5)

The standard battery connector for LoRa and Meshtastic builds, in a handy 5-pack. This JST-PH 2.0mm 2-pin connector comes pre-wired with a 10 cm stranded cable and loose wire ends, ready to solder or splice to your battery or board. It is the same connector type used on RAKwireless WisBlock base boards and countless other LoRa and microcontroller boards.

Sold in packs of five, because if you are building more than one node, you will want spares. Perfect for custom Meshtastic and MeshCore builds, battery replacements, solar node projects, and general prototyping.

What You Get

• 5 x JST-PH 2.0 connectors with cable
• Each with a 10 cm stranded wire and loose ends for soldering or splicing
• Female JST-PH connector with click locking mechanism

Common Uses

• Battery connections for custom builds: wire a LiPo or Li-ion cell to the JST-PH battery port on a RAKwireless WisBlock or similar board
• Replacing a damaged battery connector: splice a new connector onto a battery whose original lead was cut or damaged
• Solar node and sensor projects: connect power sources, sensors, or modules that use the JST-PH 2.0 standard
• General prototyping: a reliable, lockable 2-pin connection for any 2.0mm pitch application

Check Polarity Before Connecting

Important: there is no universal standard for which wire is positive on a JST-PH battery lead. Different manufacturers wire red and black in different pin positions. Before connecting anything to a board, verify with a multimeter that the polarity matches your board's battery port. Connecting a battery with reversed polarity can permanently damage your board. A ten second check protects an expensive board.

Specs

• Connector type: JST-PH compatible, female, with loose wire ends
• Pin count: 2 pins, single row
• Pin pitch: 2.0 mm
• Locking: Click lock mechanism
• Orientation: Straight
• Cable length: 10 cm
• Core structure: Stranded
• Shielding: None
• Quantity: 5 pieces per pack

Compatible With

• RAKwireless WisBlock base boards with JST-PH 2.0 battery port
• Many LoRa, ESP32, and nRF52 development boards using the 2.0mm JST-PH standard
• LiPo and Li-ion batteries and cells
• Any project using the JST-PH 2.0mm 2-pin standard

Note: always confirm your board and battery use the JST-PH 2.0mm standard before connecting. Similar-looking connectors (such as JST-XH, JST-SH, or PH 1.25mm) are not compatible and use different pin pitches.
