L76K GNSS Module
Backorder: 1 - 3 weeks
Couldn't load pickup availability
Buying for a business?
Request a quote, order via purchase order, and access volume pricing for larger deployments.
Business Sales →What's this?

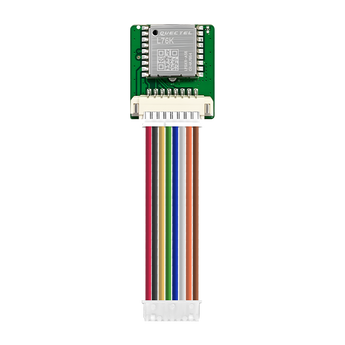

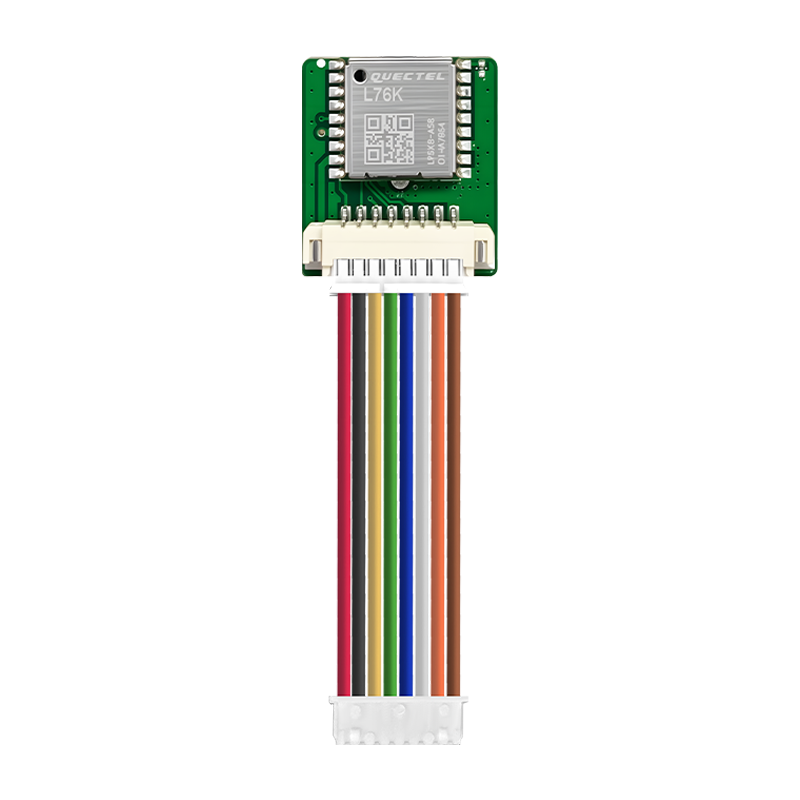

L76K is a low-power GNSS positioning module with multi-constellation support. It is fully compatible with WiFi LoRa 32 V4 and Mesh Node T114, making it an ideal choice for projects like Meshtastic.
Specifications
| Parameters | Description |
|---|---|
| Power supply | 2.8V~4.3V |
| Power Consumption | 18mA@3.3V |
| Position Accuracy | 2.5m CEP |
| Timing Accuracy 1PPS | 10ns |
| Data Update Rate | Up to 10Hz |
| Operating temperature | -40℃ to 85℃ |
| Storage temperature | -45℃ to 125℃ |
| Dimension | 10.1*9.7*2.5mm |
| Interface | 1.25mm 8-Pin SMD, With 8P adapter cable |
